製品の説明

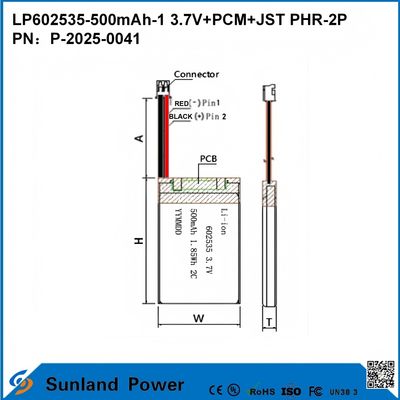

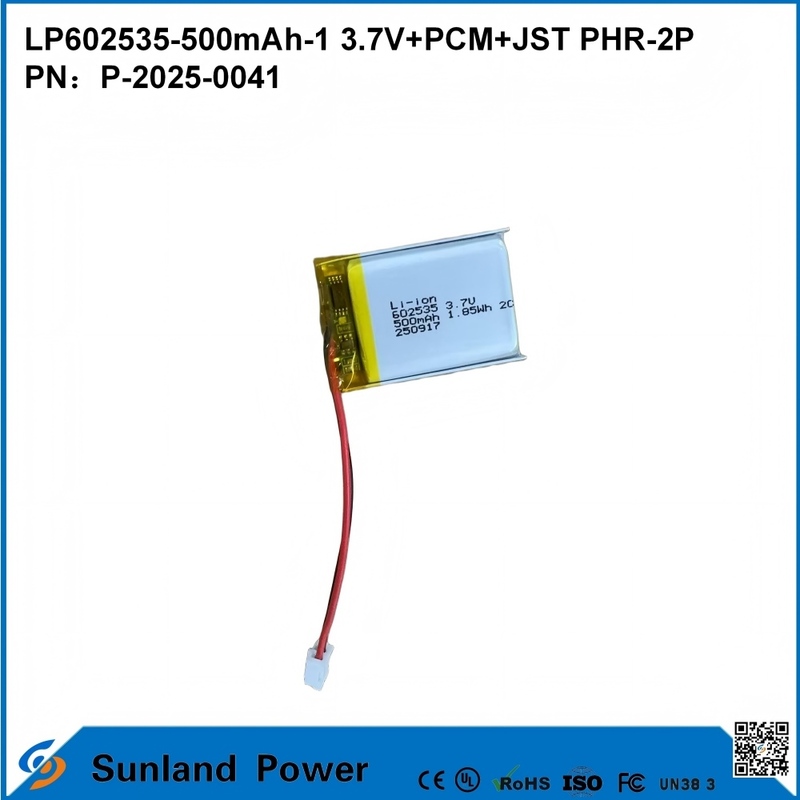

LP602535-500mAh-1 3.7V+PCM+JST PHR-2P battery
Basic Performance
| No. |
Item
|
Specification
|
Note |
| 1 |
Rated Capacity
|
500mAh |
0.2C discharge
|
| 2 | Nominal Capacity | 520mAh |
0.2C discharge
|
| 3 |
Min. Capacity
|
500mAh |
0.2C discharge
|
| 4 | Cell Weight | ≈ 9g | |
| 5 | Cell Initial Impedance | ≤ 100mΩ |
3.7V AC 1KHz measured
|
| 6 |
Normal Voltage
|
3.7 V | |
| 7 |
Initial Voltage
|
≥3.7V | |
| 8 | Limited Charge Voltage | 4.2 V | Voltage of CC charge to CV charge |
| 9 | Standard Charging Method |
0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C
|
|
| 10 |
Cut-off Voltage
|
2.75 V | Load Voltage when discharge ended |
| 11 | Standard Charging | 100mA (0.2C) |
CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
|
| 12 | Standard Charging Time | 约 6hours | |
| 13 | Rapid Charging Current | 500mA (1C) | |
| 14 | Rapid Charging Time | 约2hours | |
| 15 |
Standard Discharging Current
|
100mA (0.2C) |
CC discharge to 2.75 V |
| 16 | Max. Discharging Current | 1000mA (2C) | |
| 17 |
Operating Temperature Range
|
Charging:10～ 45℃ Discharging: -20 ～ 60℃ |
|
| 18 |
Operating humidity Range |
≤ 90%RH | |
