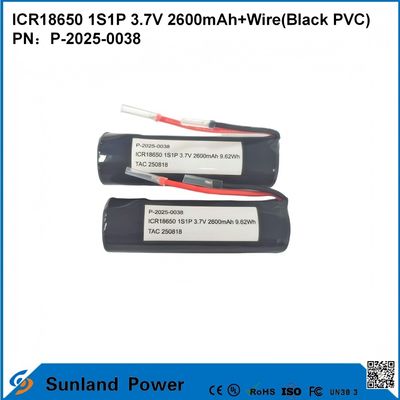

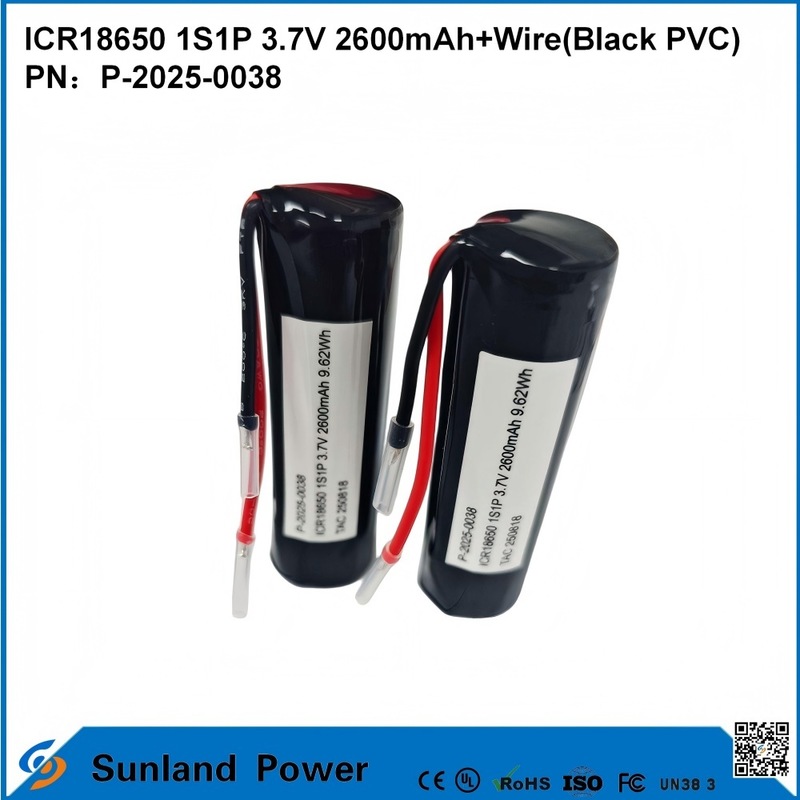

ICR18650 1S1P 3.7V 2600MAH + CABLE (BLACK PVC) BATTERY
Cell specification
|
No. |
Items | Specifications | Remark | |
| 1 |
Nominal capacity
|
2600mAh |
0.2C Standard discharge 0.2C |
|
| 2 |
Minimum capacity
|
2520mAh | ||
| 3 |
Nominal voltage
|
3.7V | Mean Operation Voltage | |
| 4 |
Charge voltage
|
4.20V±0.03V | By standard charge method | |
|
5 |
Delivery voltage
|
3.70-3.90V |
Within 10 days fromFactory |
|
|
6 |
Standard charging method |
0.2CC-CV to 4.2V, 0.01C cut off |
|
|
|
7 |
Charge current
|
0.2C |
520mA |
Standard charge, charge time about 6.5h(Ref)
|
|
0.5C |
1300mA |
Rapid charge, charge time about: 3h(Ref)
|
||
|
8 |
Standard discharging method |
0.2CD to 3.0V |
0.2C |
|
|
9 |
Cell AC internal impedance |
≤60mΩ(内含 PTC) |
Internal resistance measured at AC 1KHZ at 50%SOC 50%SOC |
|
|
10 |
Weight |
43.7±1.0g |
||
