製品の説明

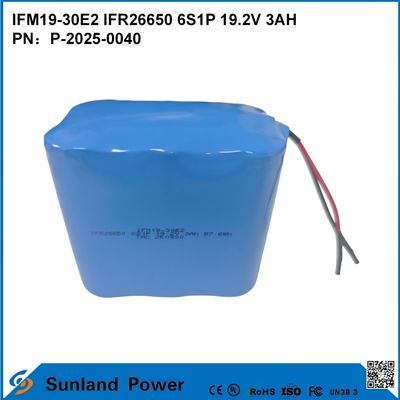

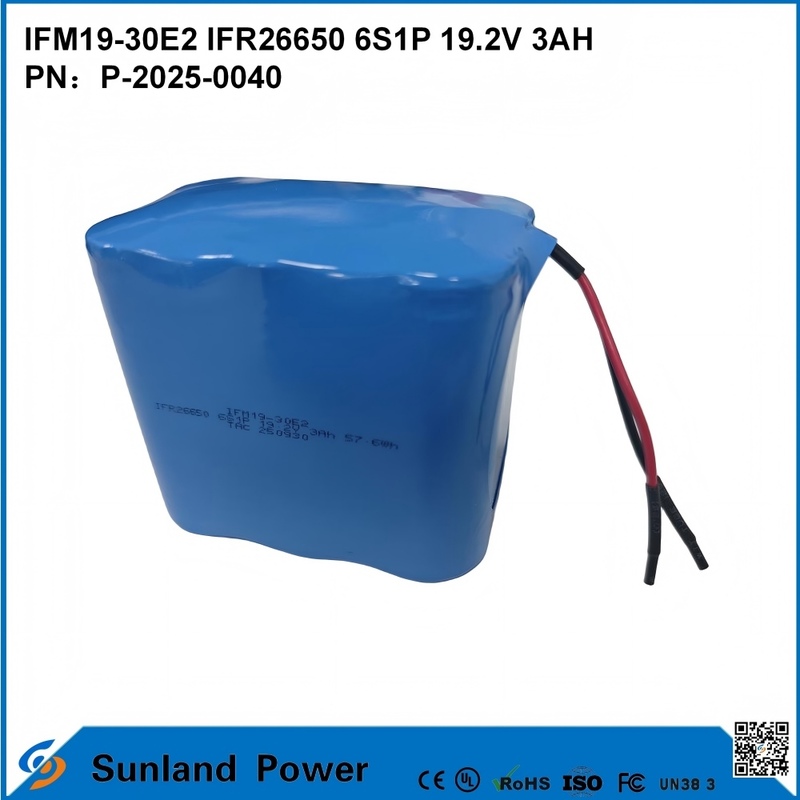

LiFePO₄IFM19-30E2 IFR26650 6S1P 19.2V 3AH BATTERY
2.Composition table for battery pack
|
Battery pack Mode |
Combination mode |
Composition table |
|
|
Cell type |
Protection board model |
||
| 19.2V 3.2Ah | 6S1P | 3.2V IFR26650-3200mAh | -- |
3.Performance index for battery pack
| Nominal Capacity | 3.2Ah |
Standard charging /discharge method |
|
| Minimum capacity | ≥3.2Ah | ||
|
Charging |
Charging voltage Max. |
21.9V |
(CC/CV)±0.2V |
|
Standard Chargin current |
1.6A | 0.5C | |
|
Continue charging current Max. |
3A | ||
|
Discharging |
End of discharging voltage Min. |
13.2V | ±0.5V |
|
Standard discharging current |
1.6A | 0.5C | |
|
Continue discharging current Max. |
3A | ||
|
Operation temperature |
Standard Charging |
0～45℃ |
Charging below 0℃ is prohibited |
|
Standard Discharging |
-20～60℃ | ||
| Weight | 约0.52kg | ||
| Internal resistance (mΩ) | ≤150 | AC 1kHz | |
