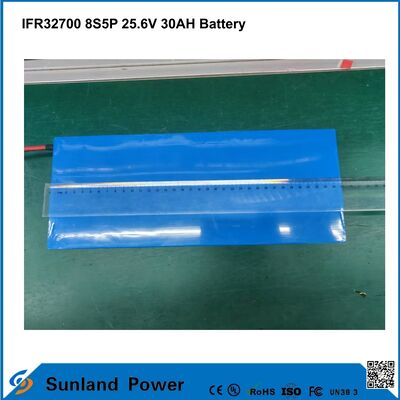

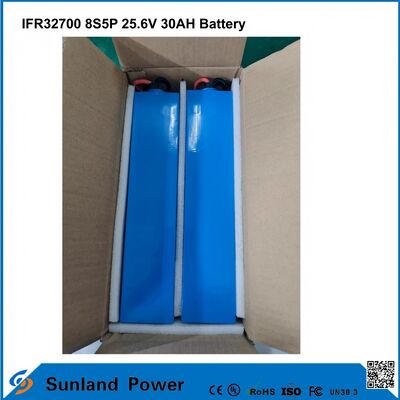

IFR32700 8S5P 25.6V 30AH Battery Used For Robot Logistics Batteries
Product Overview
The IFR32700 8S5P battery pack is a high-performance lithium iron phosphate (LiFePO4) power solution specifically designed for autonomous mobile robots (AMRs) and logistics automation systems. With a nominal voltage of 25.6V and capacity of 30Ah (768Wh), this battery delivers reliable power for continuous warehouse operations and material handling applications.
Key Specifications
|
Parameter
|
Specification
|
|---|---|
|
Nominal Voltage
|
25.6V
|
|
Nominal Capacity
|
30Ah @0.2C
|
|
Energy
|
768Wh
|
|
Configuration
|
8S5P (40 cells)
|
|
Max Charging Voltage
|
29.2±0.05V
|
|
Discharge End Voltage
|
16.0±0.05V
|
|
Max Continuous Discharge
|
15A
|
|
Operating Temperature
|
Charge: 0-45°C
Discharge: -20-60°C |
|
Storage Temperature
|
-20-25°C (1 year)
-20-45°C (3 months) -20-60°C (1 month) |
|
Dimensions
|
230×200×75mm
|
|
Weight
|
Approx. 5.8kg
|
|
Cycle Life
|
>2000 cycles
|
Applications
Warehouse Automation
-
Autonomous Mobile Robots (AMRs)
-
Automated Guided Vehicles (AGVs)
-
Automated forklift battery replacement systems
-
Sorting and picking robots
Logistics Centers
-
E-commerce fulfillment centers
-
Manufacturing facilities
-
Cold storage warehouses
-
Material handling systems
Industrial Equipment
-
Electric pallet trucks
-
Industrial cleaning robots
-
Inspection robots
-
Automated storage and retrieval systems (ASRS)
Technical Advantages
High Energy Density
-
768Wh capacity in compact design
-
Optimized for space-constrained robot chassis
-
Lightweight construction (5.8kg) for improved payload capacity
Smart BMS Integration
-
Real-time state-of-charge monitoring (1% accuracy)
-
Predictive diagnostics for maintenance planning
-
Communication interface for fleet management systems
Durability & Reliability
-
Robust mechanical design with vibration resistance
-
IP-rated protection against dust and moisture
-
Validated through stringent drop and vibration tests
Certifications
-
CE Certification: Compliant with EU safety standards
-
FCC Certification: Meets electromagnetic compatibility requirements
-
RoHS Compliance: Free from hazardous substances
-
UN38.3: Certified for safe air and sea transportation
-
MSDS: Complete material safety data sheet available
